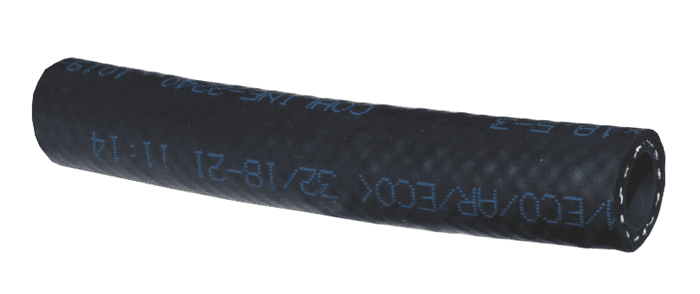

COHLINE 2240 R9 SPECIFICATION RUBBER FUEL INJECTION HOSE (10MM PUSH ON) E85 COMPATIBLE IH-010E
Cohline 2240 R9 Specification Rubber Fuel Injection Hose (10mm Push On) E85 Compatible
Sold per Meter
With the rise in ethanol and other additives percentage in petrol, the R9 specification hose is the only one you should consider when replacing existing hose.
By using a lower specification may result in premature ageing of the hose
Application
| Petrol | In Mixture With | Allowed Content | |
| Methanol | 0-100% | ||
| Ethanol | 0-100% | ||
| Butanol | 0-100% | ||
| Diesel | In Mixture With | Allowed Content | |
| Rapeseed Methyl Ester | 0-100% | ||
| Hydro Treated Vegetable Oil | 0-100% | ||
| Fatty Acid Methyl Ester | 0-100% | ||
| Siya Methyl Ester | 0-100% |
Hose Construction
| Material | |
| Inner Layer | FKM |
| Intermediate Later | ECO |
| Reinforcement | Aramid |
| Outer Layer | ECO |
Dimensions & Pressure
Inner Diameter :- 9.3mm
Outer Diameter :- 15.3mm
Working Pressure:- 10 Bar
Testing Pressure:- 20 Bar
Burst Pressure:- 50 Bar
Smallest Bend Radius:- 60mm
Working Temperature -40 Deg C to +125 Deg C
Additional Standards:
BMW GS93010
DBL 6257.70
GME 08007
SAE J30R9
VW TL52424
