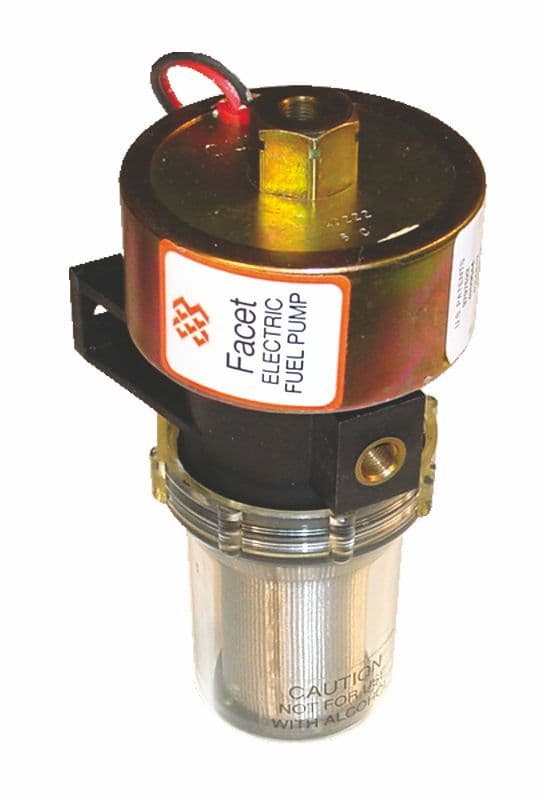

Facet Dura-Lift Pump 40237 24v

Facet Dura-Lift Fuel Pump 40237

Application: Refrigeration trucks, marine generator sets, diesel filtration systems, industrial applications, and other diesel lift applications. These pumps are rated for diesel fuel, gasoline, blended alcohol fuels, and fuel additives.Self Priming to 10ft

Solid State Reliability: Proven on many original equipment applications No electrical contacts. No bearings or diaphragms to wear out or fatigue. Endurance life almost doubles that of our nearest competitor.

Easy to Install-Easy to Service: Two bolt mounting makes installations easy. Nothing to adjust. The pump is self-priming to 120 inches (3.0 m). Vertical mounting is preferred to assure maintenance of rated pressures. The transparent housing allows for visual capability to monitor the cleanliness of the stainless steel filter.

Eliminates Vapor Lock: When properly installed on most vehicles a constant, smooth, dependable supply of fuel under pressure is assured in the hottest weather or in high altitudes.

Facet Fuel Pump Part Number 40237

Specification

Check Valve Yes

Voltage 24v

Earth Neg

Pressure (Psi) 11.5-9

Flow:- US Gallons/Hr 33

Dry Prime Height in Mtrs 3

Thread Size nptf 1/8th

Filter Micron 80

Loom Connector Block  No

Dimensions 180mm x 82mm

Weight 1.1kg
