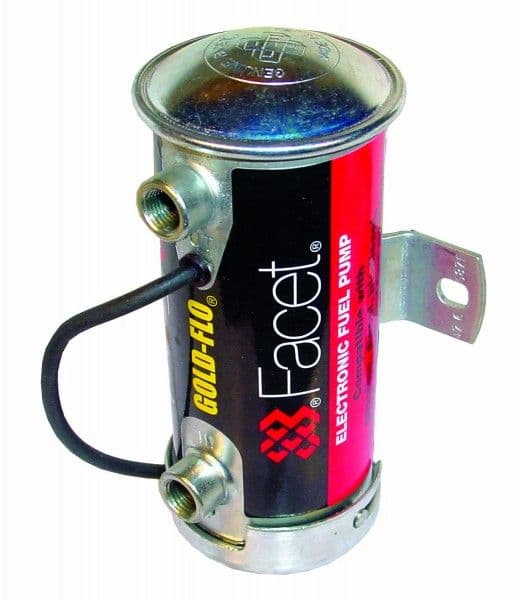

Facet Red Top Fuel Pump - Competition 480532, RTW506
Authentic Facet Red Top Cylindrical 'Works' Fuel Pump - New Solid State Circuitry
- Competition 480532E / RTW506
Facet 480532 Red Top Cylinder Fuel Pump - RTW506
Specification:- Competition
Pump:- 480532E
Voltage:- 12v
Earth:- Neg
Pressure (Psi):- 6.0-8.0
Flow:- US Gallons/Hr 40
Dry Prime Height in Mtrs:- 0.6
Thread Size:- 1/4 npt
Operating Temperature:- -40¼ to +180¡ F (all Models)
Average Run Time or MTBF:- 6000 hrs
Legal Requirements:- Certified & Complies With EEC 95/54 Requirements
Length:-140mm
Diameter:- 54mm
Weight:-0.7kg
Fuel Union Installation:- When fitting fuel unions, either wrap PTFE tape around the threads or use Loctite 243 to create a fuel proof seal
Please Note:- Designed and manufactured to automotive specification and not recommended for the maintenance of flight
Cross Reference
| Make | Part Number |
| Rolls Royce | RH14187 |
Reviews
Martin Leesome
- Manchester
Facet fuel pump 480532e, my fitting experience
My new Facet fuel pump arrived quickly which was good as my Rover V8 original pump had died on me. The pump was straight forward to fit with only 2 bolts but initially leaked fuel so off it came again! It transpired this was my fault, I had missed the instruction to seal with PFTE tape. Toddled off and got some tape, re-fitted and everything good since. Noisier than the original pump but I am not bothered about this. If I am not breaking down on the side of the road then I am happy! Been on the vehicle a month now thank you.
