HIGH VOLUME PRE-FEEDER FUEL PUMP & FILTER MOTORSPORT 246 LTR/HR¾ SWIRL POTS (JIC 6) ITP420

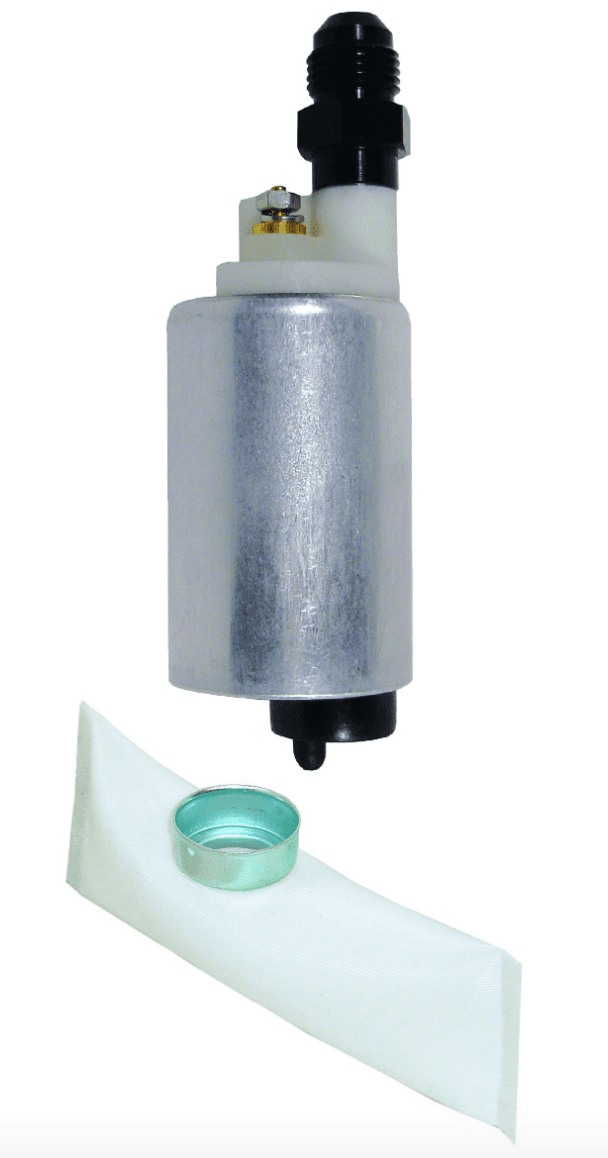

Motorsport High Flow In-Tank Low Pressure Feeder Pump & Filter, Replaces AC 6441336

This Hi motorsport In-Tank Primer Fuel Pump is an major upgrade to the old AC 6441336 fuel pump and was specifically designed for supplying competition vehicles with an external swirl pot in the fuel system, flowing a massive 246 Ltr/hr free flow compaired to 162 Ltr/hr,

Same Flow as the AC 6442520 but has a higher lock out pressure of 10+ psi as opposed to the original of 5.5 psi which should not be an issue when feeding a swirl pot

Fittings In (mm):- 19mm

Fittings Out (mm):- JIC 6 Male Fitting

Pump:- Hi P3029.1

Voltage DC:-12

Max Amps:- 2.5

Flow Ltr/Hr (Max):- 228

Max Pressure Psi:- 10+

Length (mm):- 103

Diameter (mm):- 37

Weight (Kg):- 0.125

Upgrade for :-
